SMTCL Automatic Slant Bed CNC Lathe HTC30H for Sale Designed for Small Part Manufacturing

Nom de la marque: SMTCL
Numéro de modèle: HTC 30H
Lieu d'origine: Chine
Attestation: CE ISO certification
Quantité minimum de commande: 1
Capacité d'approvisionnement: 50 ensembles par mois
Les étiquettes

Machine de tour de la couche horizontale CKA6136

Machine de tour de la couche horizontale 5.5KW

Machine horizontale de la commande numérique par ordinateur CKA6136

Détails du produit

Nom de marque: SMTCL Numéro de modèle: HTC 30H
CNC ou pas: CNC Mot clé: Centre de tournage CNC horizontal
Longueur de Max.Cutting: 500mm Diamètre de Max. Cutting.: 300mm
Max. nager le jour. au-dessus du lit: 420 mm Voyage de l&#39;axe x: 160mm
Voyage de l&#39;axe z: 560 mm Vitesse de broche: 4500 tours/min
Mettre en évidence

Small Part Manufacturing

,

High-precision machining

,

SMTCL Automatic Slant Bed CNC Lathe

Description du produit

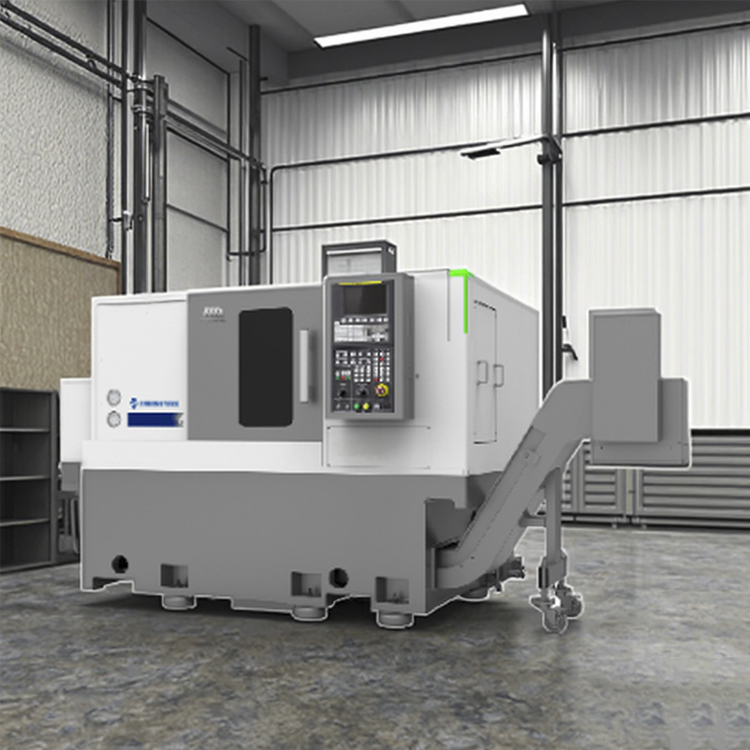

SMTCL Automatic Slant Bed CNC Lathe HTC30H for Sale Designed for Small Part Manufacturing 0

Product Description:

SMTCL Automatic Slant Bed CNC Lathe HTC30H for Sale Designed for Small Part Manufacturing

The new generation HTC-H/S CNC lathes are optimized through professional design and analysis software. Assembled, verified and improved with advanced manufacturing and testing technology. They have good cutting performance and can meet processing various rotary parts.
HTC16H/30H CNC lathes occupy a small area and are suitable for high-precision processing of various small-sized parts, effectively meeting the processing of automobiles, bearings, hardware, medical and other industries.

Product Features:

1,High Efficiency
◆ High rapid traverse speed of two axis
◆ Split servo tailstock
◆ High-efficiency servo tool holder
◆ Optional sub-spindle multi-sequence integrated processing
2,High Precision
◆ High-precision pre-stretched screw
◆ Error compensation technology
◆ Quantification of process standards
◆ Strict inspection standards
3,High Rigidity
◆ High-quality cast iron bed and other key castings

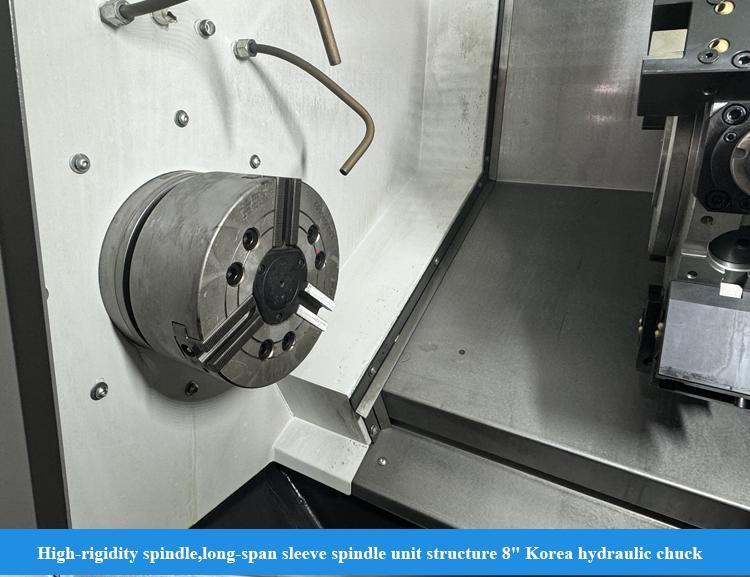

◆ Large span spindle unit
◆ Arc-shaped anti-bending bed gap
◆ Small spindle structure tailstock

Product Details:

SMTCL Automatic Slant Bed CNC Lathe HTC30H for Sale Designed for Small Part Manufacturing 1
Rapid moving speed: 30m/min
The servo motor is directly connected to the ball screw through a coupling, reducing intermediate links and achieving gapless transmission. The X and Z-axis guide rails adopt imported linear rollingguide rails to ensure high rigidity, good dynamic performance and accuracy, increase operating speed and improve production efficiency.


SMTCL Automatic Slant Bed CNC Lathe HTC30H for Sale Designed for Small Part Manufacturing 2
Split Servo Tailstock
The tailstock can be moved in an optional servodriven manner, which can precisely control and flexibly adjust the tailstock moving speed and working clamping force according to processing requirements, allowing the tailstock to quickly approach the workpiece and tighten without impact , and can provide real-time feedback on the tightening position.improve production
replacement efficiency. It adopts an upper and lower split tailstock ,easy to adjustment accuracy and improve maintenance efficiency.
SMTCL Automatic Slant Bed CNC Lathe HTC30H for Sale Designed for Small Part Manufacturing 3
Double fixed pre-tensioned structure
X axis develops a double fixed support structure and uses a pre-stretched screw to effectively offset pre-stretch deformation and temperature risedeformation. It cooperates with a special sealing structure to reduce the temperature rise of the screw, thereby achieving high precision and high precision of machine tool feed stability
SMTCL Automatic Slant Bed CNC Lathe HTC30H for Sale Designed for Small Part Manufacturing 4
Y axis configuration
Optional Y-axis configuration, combinedwith BMT powered turret, high-precision C -axis structure and a variety of poweredtool holders, can realize complex surface processing with once installation.
SMTCL Automatic Slant Bed CNC Lathe HTC30H for Sale Designed for Small Part Manufacturing 5

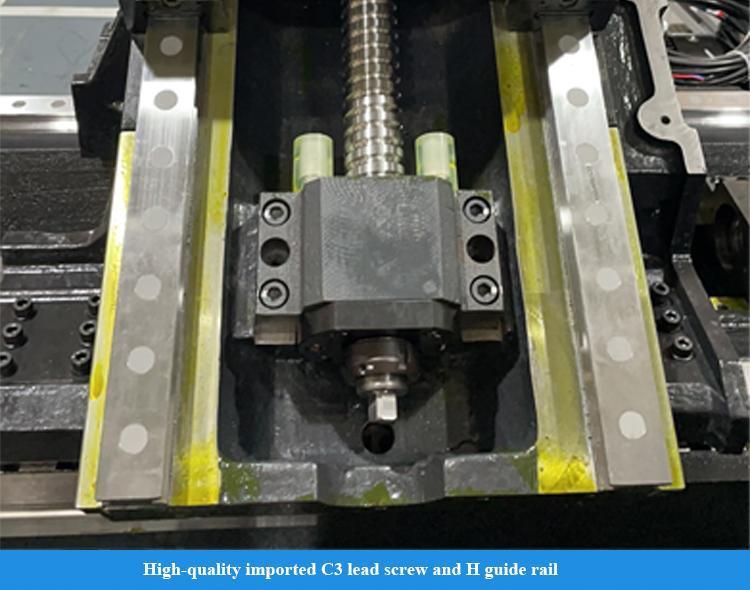

High precision ball screw
It uses high-quality imported C3-grade screw and H-grade guide rail, and is directly driven by servo motor to achieve excellent operating accuracy.
SMTCL Automatic Slant Bed CNC Lathe HTC30H for Sale Designed for Small Part Manufacturing 6
Anti-bending saddle
The guide rail span is reasonably enlarged,the motion system structure is optimized,and the main body of the bed saddle isdesigned in an arc shape to ensure theoverall rigidity of important components.
SMTCL Automatic Slant Bed CNC Lathe HTC30H for Sale Designed for Small Part Manufacturing 7

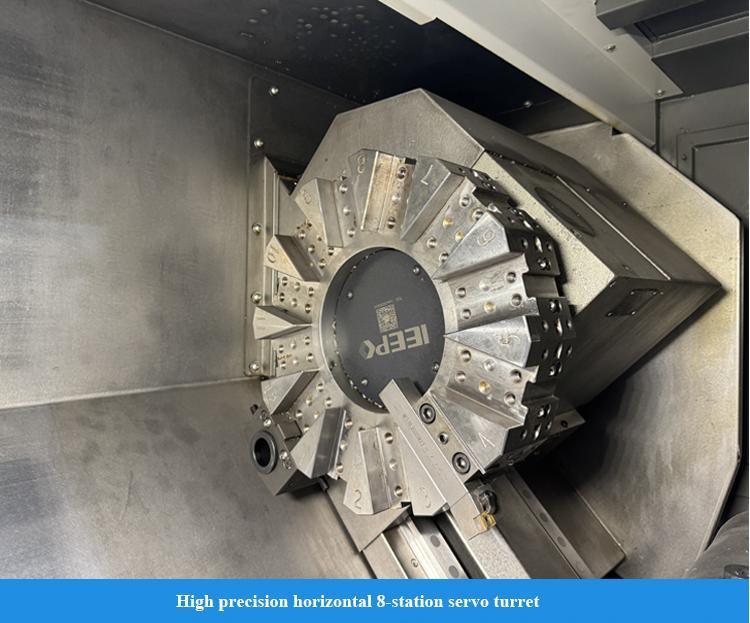

Efficient servo powered turret
Standard BMT interface, high rigidityconnection; the tool is driven by DIN1809 interface, which has reliable transmission and low failure rate;the drive motor is side-mounted and compact in structure; it is equipped with high-precision C axis and brake device to achieve high-efficiency integrated processing of turning, milling anddrilling.
SMTCL Automatic Slant Bed CNC Lathe HTC30H for Sale Designed for Small Part Manufacturing 8
Internal cooling tool holder
Optional internal cooling tool holder and water outlet from the tool center realize efficient chip removal during inner hole machining and ensure processing quality
SMTCL Automatic Slant Bed CNC Lathe HTC30H for Sale Designed for Small Part Manufacturing 9
Driven tool milling capability
Workpiece material: HT200
Tool model: Ф20 square shoulder
milling cutter
Cooling status: water cooling
Driven tool drilling capacity
Workpiece material: HT200
Tool model: Ф16 twist drill
Cooling status: water cooling

Product Paramenters:
Items
Units
HTC 16H(Q)
HTC 30H(Q)
Max.cutting dia.
mm
Φ160
Φ300
Maximum cutting length
mm
160
500
Max.swing dia. over bed
mm
Φ420
Φ420
Max.swing dia.over bed gap
mm
Φ160
Φ280
Spindle
Spindle nose model
-
A2-5
A2-6
Front bearing inner dia.
mm
90
100
Spindle taper and hole size

1:20;Φ62
1:20;Φ70
Dia. of spindle hole Max.
mm
Φ56
Φ65
Max.bar dia.
mm
Φ44
Φ50
Standard chuck dia.
inch
6"
8"
Spindle speed range
r/min
6000
4500
Spindle max.torque
N.m
72(1500r/min)
180(576r/min)
Rated spindle torque
N.m
86(1500r/min)
110(769r/min)
Main motor output power continuous/30 min.
kW
11/13.2
9/11
X/Z axis
X-axis rapid traverse speed
mm
30
30
Z-axis rapid traverse speed
mm
30
30
X-axis travel
mm
145
160
Z-axis travel
mm
205
560
Tailstock
Tailstock travel
mm

30
Tailstock drive method


Saddle drag
Tailstock sleeve travel
mm

100
Tailstock sleeve dia.
mm

Φ100
Tailstock taper hole taper


MT- 5
Tool turret
Tool turret form

8-station horizontal servo turret
8-station horizontal servo turret
Center height
mm
63
80
Repositioning accuracy of tool holder transposition
Sec.
±1.6
±1.6
If could choose tool nearby
mm
yes
yes
Others
Distance between spindle center and floor
mm
926
936
Machine weight
kg
2600
3500
Total power supply capacity
KVA
23
23
Overall dimensions(LxWxH)
mm
1830×1580×1650
2295×1680×1650
Standard configuration:

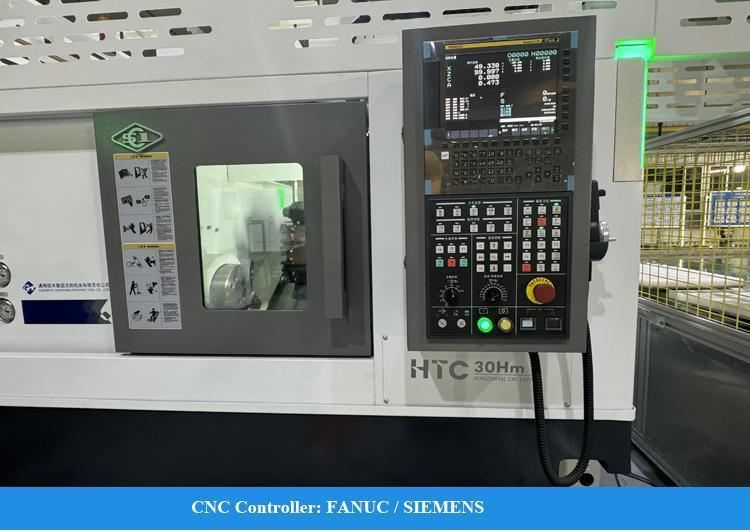

1,FANUC-0i-TF Plus (5) System (H/S Series)
2,GSK988TA System (Q Series)
3,Sleeve-type spindle
4,Hollow chuck oil cylinder
5,8-station servo tool carriage
Optional configuration:
1,Siemens system
2,Tool setting gauge
3,12-station servo tool carriage
4,Workpiece measurement
5,Power tool carriage
6,Oil mist collector
7,Rear chip removal unit
8,Tool damage detection
9,Pneumatic door

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
SMTCL Automatic Slant Bed CNC Lathe HTC30H for Sale Designed for Small Part Manufacturing 10
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:
SMTCL Automatic Slant Bed CNC Lathe HTC30H for Sale Designed for Small Part Manufacturing 11

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
